End Fittings - Liquid Light Guides
| Core Diam. | Standard End Fittings | Outer Sheath | ||||
| Ø4 | Ø3 | Ø2 | l1 | l2 | Ø1 |  |
| 3 | 5 | 9 | 24 | 20 | 7 | |
| 5 | 7 | 12.5 | 70 | 20 | 9.5 | |
| 8 | 10 | 15 | 40 | 20 | 12.5 | |
| 10 | 14 | 20 | 63.5 | 20 | 15 | |

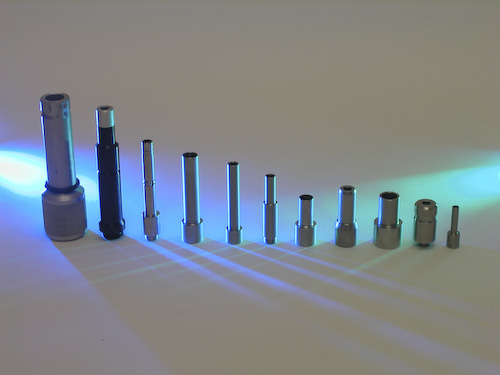

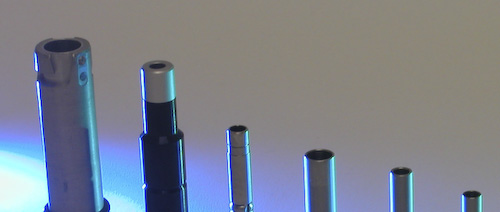

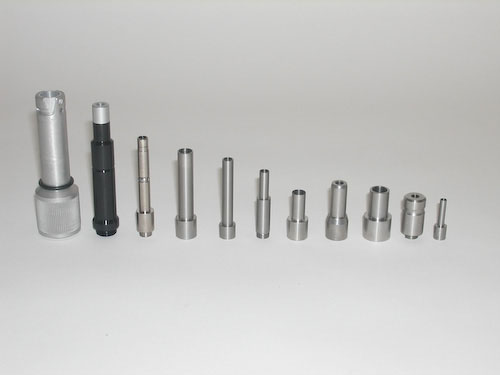

A wide variety of end fittings are available including Storz, ACMI, Wolf, Olympus and specific customer requests

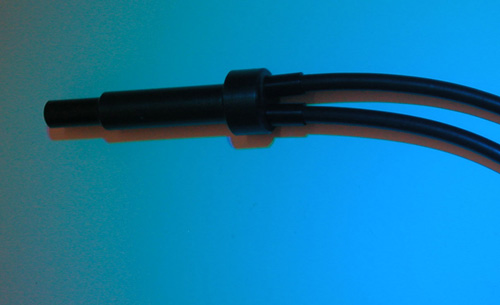

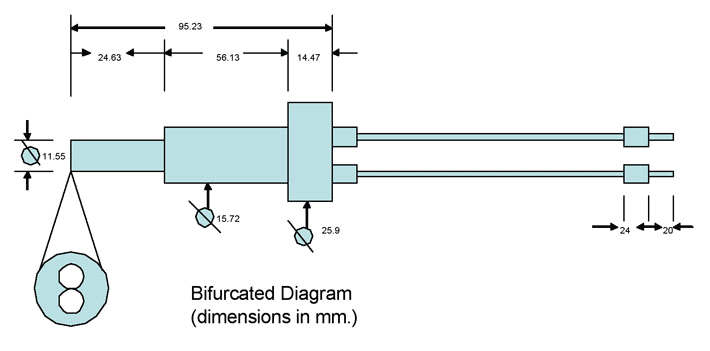

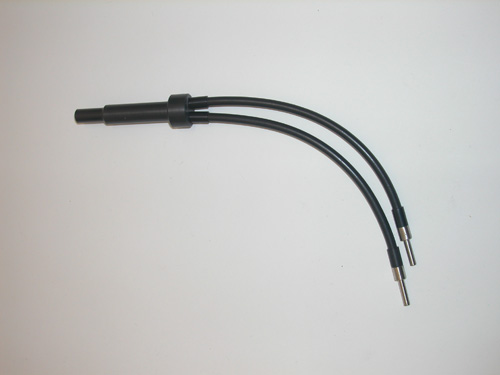

For dual source applications, we offer bifurcated liquid light guides (see diagram). Each leg has an active core of 3 mm and a length of 1, 1.5 and 2 meters (39, 59 and 79 inches).
