Sheathing - Liquid Light Guides

Core Diam. Standard End Fittings Outer Sheath fitting diagram
Ø4 Ø3 Ø2 l1 l2 Ø1
3 5 9 24 20 7
5 7 12.5 4.5 20 9.5
8 10 15 40 20 12.5
10 12.5 18 50 20 15

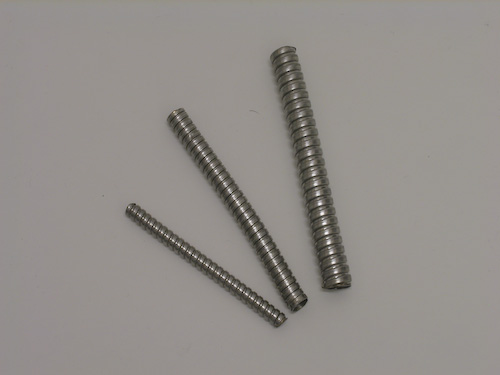

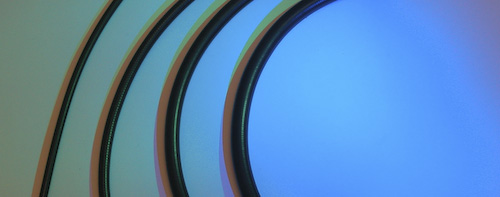

Liquid Light Guides can be made with a variety of outer sheathing materials, including rubber-coated aluminium, PVC, Stainless Steel, or others by customer request.
